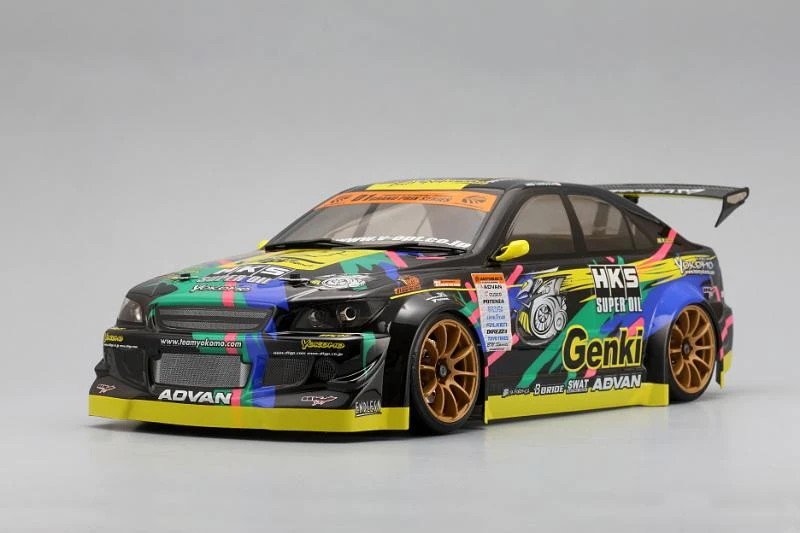

DP-IS220 Yokomo – 1/10 Scale EP RC Drift Car Kit – HKS IS220-R Altezza

This 1/10scale electric redio controlled car kit is modeled after the “HKS Racing Performer IS220-R” D1 machine that was campaigned at the highest level in the 2005 pro drift championship. All of the essential features have been miniaturized to allow the alluring aspects of drifting to be enjoyed with a radio-controlled car. The underpinnings are compromised of Yokomo’s newly developed MR-4TC SD molded type chassis (which features an advanced racing suspension geometry for superior handling performance), and a highly effocoent shaft drive full-time 4wd system. The essential keys to drifting, such as drift angle and distance, are enhanced by the Yokomo Super Drift tires(patent pending). And for improved performance, a slew of optional parts are available to tune the chassis, just like it’s full-size counterpart. The detailed exterior begins with an aggressiely styled body, GT-type wing,areo mirrors, and even wheels that have been carefully detailed to replicate the scale look of the original. In addition to the realistic drifting performance, this kit an also be proudly displayed as a static model.

MR-4TC SD CM CHASSIS

• High efficienly shaft drive full-time 4WD system (Sealed transmission cases)
• High strength molded composite chassis
• Fully adjustable double-wishbone suspension
• Adjustable alignment via tie-rod turnbuckles
• Lsd type ball differentials (Front & Rear)
• Front universal driveshaet, Rear dog bones.
• Copposite shock absorrers (Adjustable Damping)
• Front Urethan bumper, Rear bumper
• Aluminum Die-cast Clamp type motor mount
• Spur gear (70T)
• Pinion gear (30T)
• Ball Bearings (#9 pieces)

  EXTERIOR

• HKS racingperformer IS220-R body
• HKS racing GT wing
• HKS racing performer IS220-R detailed decals(light-rear taillights-window trim)
• Window paint masking
• Accessory parts(exhaust muffler-brake rotors-wipers-aero mirrors)
• Super drift tires for superior drift distances and angles(patent pending)
• Advan racing RS wheels(26mm varrow width)

  ADDITIONAL ITEMS REQUIRED (SOLD SEPARATELY)

• 2 Channel radio set

  *Transmitter

  *Receiver

  *Speed Controlled

  *Servo
• SUB-C Type 7.2V Battery (6 Cell) stick pack & side-by-side pack compatible
• Charger
• Motor (Yokomo motors recommended)
• Paint for polycarbonate bodies

  *Actual product may differ slightly from product shown in photos used on this package.

  *Product contents subject to change without notice.

• Scale: 1/10
• Overall body length: 430mm
• Overall body width: 194mm
• Overall height: 136mm
• Overall chassis width: 190mm
• Wheelbase: 258mm
• Internal drive ratio: 2.353:1
• Full weight: Approx.: 1650g

�@
