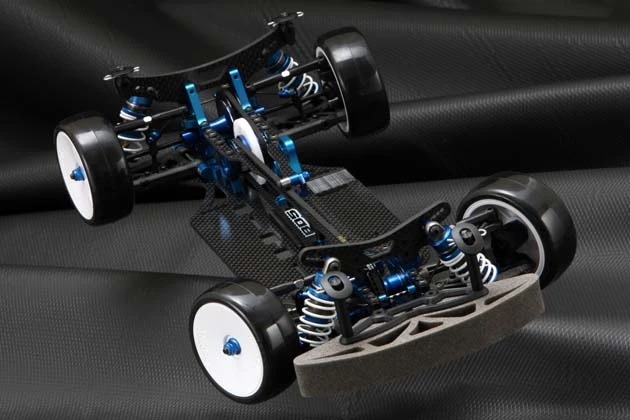

MRTC-BD5W Yokomo – Yokomo BD5 World Spec Kit

All the important details of modern touring cars have been incorporated into this development. This competitive model already achieved numerous successes in 2009. For example: Ronald Volker was the 2009 Japanese champion.

Changes in the WORLD SPEC edition compared to previous version:

• Main chassis: LiPo chassis
• Radio plate for LiPo batteries
• YBD.008FG light carbon-fibre-reinforced transverse control arm in front
• YBD.008RG light carbon-fibre-reinforced transverse control arm in rear (40.5mm)
• YBD.413G light carbon-fibre-reinforced transverse control arm in front
• YBD.415SG light carbon-fibre-reinforced steering lever in front
• YBD.415RG light carbon-fibre-reinforced hub in rear
• YBD.500P Aluminium differential with blades

Features:

• Motor lies as low as possible.
• Extremely low belt pullies
• Extremely simple adjustment of belt tension
• Split engine block for better flex of the rear part of the chassis for more rear axle traction
• New differential with larger diameter differential discs; making the differential smoother and keeping it from slipping so easily
• New, improved CVD articulated joint with 2-mm pins
• New C hubs, rear hubs
• Improved shock absorbers
• Extremely free and smooth new stabiliser mounts
• Rigid front axle comes standard
• Optimally suited for LiPo and LiFe batteries

RC functions

Right/left
Forward/brake

Specification

Width : 189 mm
Ground clearance: 4-10 mm
Scale: 1:10
Electric motor : BRUSHLESS
Overall length, approx.: 370 mm
Wheelbase adjustable: 254-259 mm
All-up weight RTR, approx.: 1330 g
Wheel diameter: 65 mm
